- Built-in proximity card reader
- 12~24 VAC/VDC Auto-adjusting operation
- Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3
- Up to 50 possible visitor codes for one-time or limited-time use (1~99 hours)
- Up to 50 duress codes for output 1, 10 for output 2, and 10 for output 3
- Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max. / output 3: transistor ground, 100mA@24VDC
- Outputs 1, 2, and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Tamper output N.C. Dry contact, 50mA@24VDC max.
- All features are programmed directly from the keypad; no need for an external programmer
- EEPROM Memory protects programmed information in case of power loss
- Duress code triggers a silent alarm if a user is forced to open the door under duress
- Egress input lets users exit the premises without keying in the code
- Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
- Mounts to a standard single-gang back box (surface-mount back box included)
- Keypad active or alarm output selectable via jumper
- Interlocking input for connecting to a second keypad
- Door sensor input for anti-tailgating
- Data I/O terminal for split-series setup providing added security
- Expansion port for future optional features

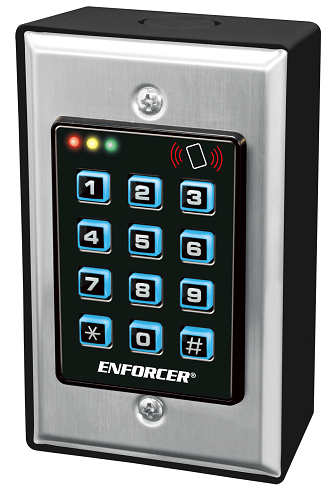

Digital Access Illuminated Indoor Keypad with Prox Card Reader JSK-1131-SQ
yJSK-1131-SQ Digital Access Illumunated Indoor Keypad
with Prox Card Reader
