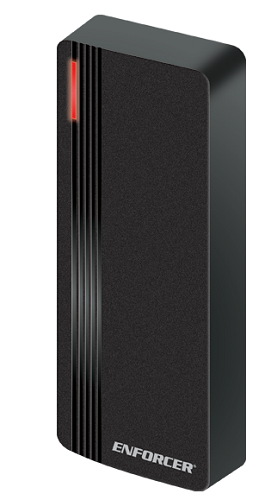

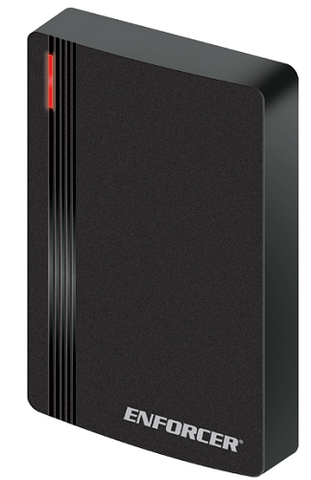

Stand-Alone Proximity Readers with Wiegand PR-3123-PQ (Mullion); PR-3125-PQ (Single Gang)

Stand-Alone Proximity Readers with Wiegand
PR-3123-PQ (Mullion); PR-3125-PQ (Single Gang)

• 2-Door interlock
• Includes remote programmer
Built-in tamper alarm and external alarm output
Uses EM 125kHz cards – 10 User cards included
1,000 Users (up to 998 users and 2 duress users)
9~24 VDC Operation with low current draw – 90mA max.
Egress input lets users exit the premises without using a card
EEPROM Memory protects programmed information in case of power loss
Form C relay output – 2A@12VDC w/ adjustable output time – 0.5~99s, or toggle
Epoxy-filled ABS plastic housing, Weatherproof – IP66; extreme cold tolerance to -40° F (-40° C)
Can serve as either Wiegand reader or controller, both output and input are selectable from 26~37 bits
